“POLARIS” is a smart bike navigation device that helps cyclists enjoy the scenery along their way.

Application:

“POLARIS” is an app designed for cycling enthusiasts. It can help them plan the best route for cycling. Team travel, team up with friends and share routes. At the same time, it provides a platform to communicate with friends. Let it record and share the good times of each cycling!


# 666666

# 876597

#98A6F2

# CCCCCC

Problem Description


Problems with mobile phone navigation during cycling

1.Easy to drop. 2.Difficult to hear navigational prompts in noisy environments. 3.Complex navigation information. 4. Poor endurance. Etc

Design Concept


01

Touch : Vibration

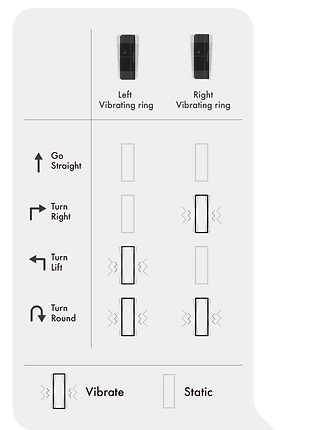

If it is based on the vibration of left and right handlebars to transmit navigation information, through touch instead of vision in order to achieve the target totally free the rider’s eye.

(The information such as turn left, turn right, turn around and etc, which can be assigned to two handlebars.)


02

Modularization Design Touch & Vision

In the entire navigation product, I will also match a navigation screen that displays simple orientation information. In order to solve the problem of uneasiness caused by the sudden absence of visual information during the adapting process to the perceived direction through vibration. But when the riders get used to receiving navigational guidance via vibration, they can choose to remove the screen and more completely liberate their eyes.


03

Bluetooth Connection

App Design

The ‘Polaris’ APP is connected to the navigation devices.



If you set the route in advance on the phone, you can put the phone into your bag and just follow the guidance of the navigation device.

Emotion Board


Sketches


Final Products


Vibrating

Rings

Navigator

Screen

Navigator

Base

'POLARIS' APP

'POLARIS' DEVICES

How to use


How to charge?

01

The navigation screen and the left and right vibration rings are stacked together, and they touch each other through metal so that they can be charged together.


How to fix the Vibrating rings on the bicycle?

02

Clip the vibrating ring in from the top of the handlebar.


Insert the vibrating ring from the side of the handlebar.


The vibrating ring is attached to the handlebar!

How to fix the navigation screen on the bicycle?

03


Put the rubber band together.

Attach and fix to the bike.

Screw the navigation screen into the thread of the rubber band.

The navigation screen is stably attached to the bike.

​Usage Scenario


In briefly, for example, if the cyclist needs to turn right at the next cross, the vibration frequency of the vibrating ring will be more rapid with the shortening of the distance from the cyclist to the next intersection, which means that the shorter the distance, the more frequent the vibration.

More Details

01


Exploded Views

02

Sizes

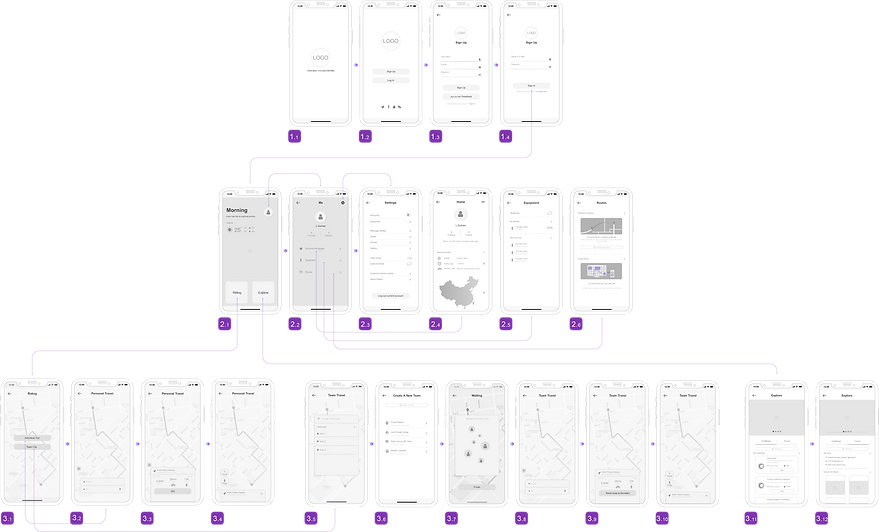

UI Design


“Polaris” is an app designed for cycling enthusiasts. It can help them plan the best route for cycling. Team travel, team up with friends and share routes. At the same time, it provides a platform to communicate with friends. Let it record and share the good times of each cycling!


Cycling Pages


There are two modes of cycling navigation:

Personal Travel

&

Team Travel

01

Personal Travel


Record and save each trip route and related data.

02

Team Travel


Team up with friends and share the route with all your teammates in advance.

Communication Platform Pages


Cycling Challenge

02

"Polaris" allows more cycling enthusiasts to join the activities and make new friends.

Cycling Forum

01

"Polaris" provides a platform for cycling enthusiasts to communicate with each other and provide more interesting topics to them.

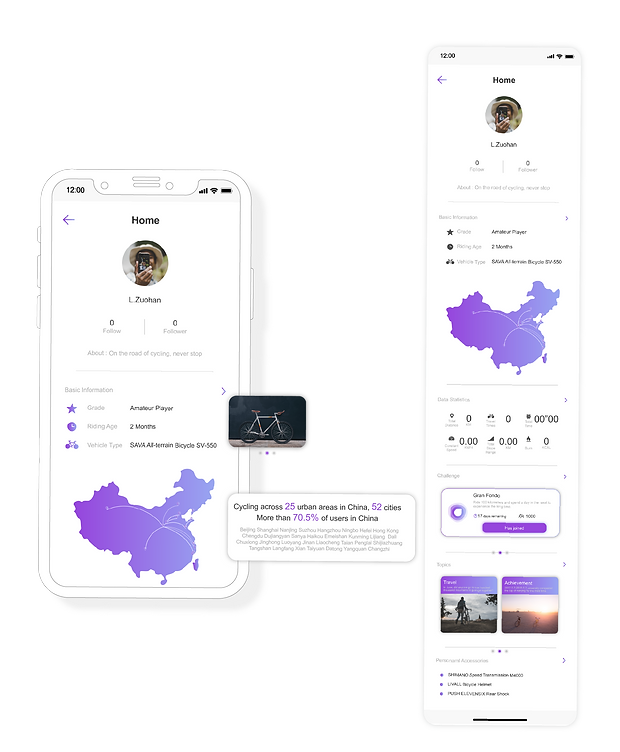

The home homepage contains more personal information about the cyclist, such as the number of miles cycled, the cities he has travelled to, the challenges he has taken part in, the equipment he owns, etc.



And BlueTooth connection interface and personal cycling route collection and creation page.

Home Pages


Personal Homepage

01


 Equipment Matching

02


Personal Route Management

03


Other Pages


Navigator Screen UI Design


Number

01

03

02

Boot interface, Bluetooth interface.

Speed, cycling time, cycling distance interface.

Charging interface.

The above interfaces are all presented to the riders with concise visual information.

04


05

The representing numbers reveal the distance from the next turn.


Light

Guide the way forward by the color bar in the outer circle of the screen.

Storyboard


Video
